Product Name | INSTANTANEOUS GAS WATER HEATER (Ltr/min)△T=25K |
Gas Type and Pressure | Y/L.P.G 2800Pa | T/N.G 2000Pa |
Storage / Tankless | Instant / Tankless |
Heating status | Heating ≤ 10 seconds Stability ≤ 10 seconds |
Over Temperature ≤2 |

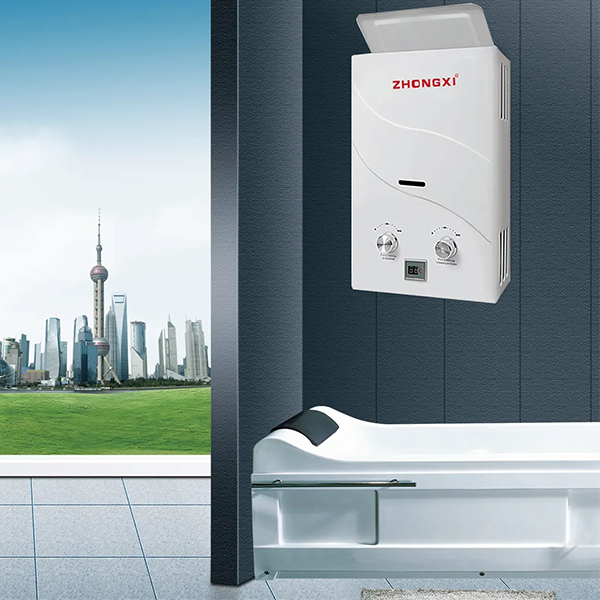

Installation | Wall Mounted |
20M timer- LCD -shower-ODS | Optional |
Thermos Efficiency | >=84% |
Ignition Type | Electrical Pulse Ignition with two ignition pins |
Vent Type | Natural Exhaust |
Power Supply | DC Battery:2*1.5v |
Water Pressure Range | 0.025MPa-0.8MPa/0.25bar-8bar |

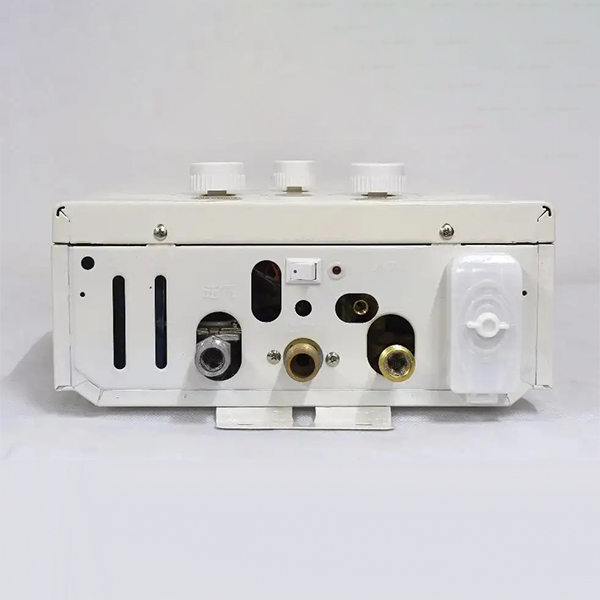

Connection Pipe | Gas inlet | Gl/2" 9.5~11.5mm |
Water inlet | Gl/2" G3/4” |
Water outlet | Gl/2" G3/4" |
Natural Type Gas Water Heater |
Capacity（L） | Headload（kW） | Product Size (mm) | Carton Size (mm) | N.W. (KG) | G.W. (KG) | 20GP/40HQ (PCS) |
|
5 | 10kW | 370*290*120 | 560*320*220 | 4.5 | 5.5 | 910/2080 |
6 | 12kW | 370*290*120 | 560*320*220 | 4.7 | 5.7 | 910/2080 |
FAQ
Q1: Are you the manufacturer or trading company?
A:We are the manufacturer with nearly 30years home appliances manufacturing experiences.
Q2: Can we have our logo or company name to be printed on your products or the package?
A: Welcome OEM, CKD, SKD, Finished Product.
Q3: Can l get samples?
A:We can supply sample for checking, you can discuss the details with the sales.
Q4: How long will take for mass production?
A:Usually 25-45 days depending on the products category.
Q5: What certificate can you provide?
A:CE,CB,GS,ETL,SAA,KC,ROHS,REACH,LFG Bare available here.Please check the details with sales.
Q6: Can I visit your factory?
A:Do welcome your visiting. Please contact with the sales for the pick-up service.
