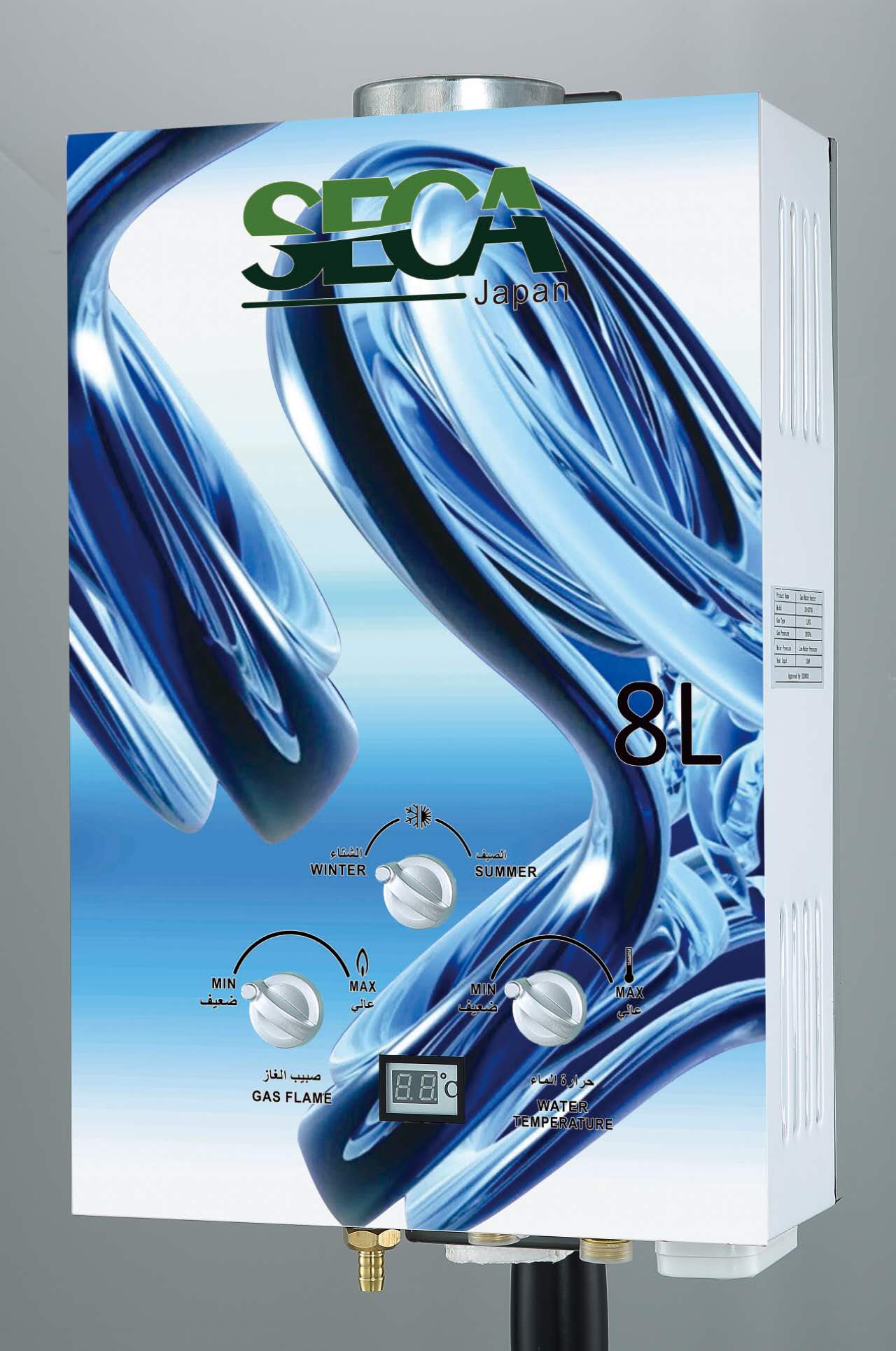

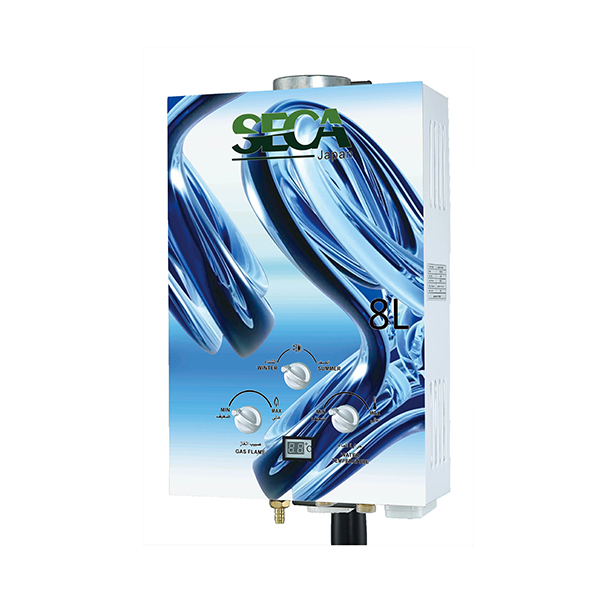

Product Name | INSTANTANEOUS GAS WATER HEATER (Ltr/min)△T=25K |
Gas Type and Pressure | Y/L.P.G 2800Pa | T/N.G 2000Pa |
Storage / Tankless | Instant / Tankless |
Heating status | Heating ≤ 10 seconds Stability ≤ 10 seconds |
Over Temperature ≤2 |

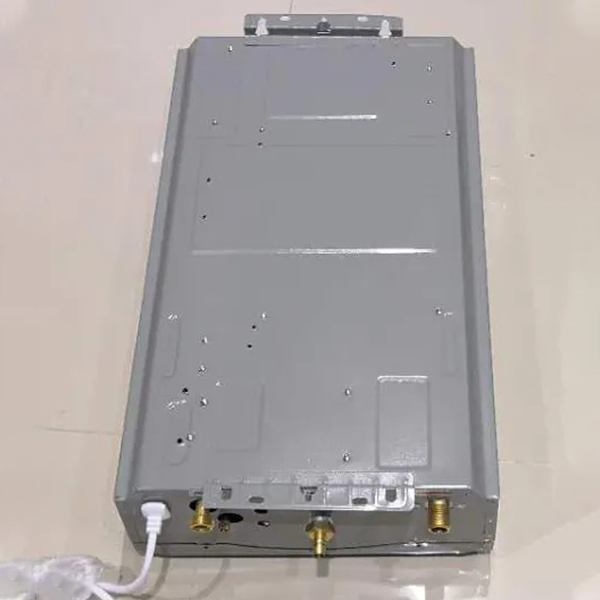

Installation | Wall Mounted |
20M timer- LCD -shower-ODS | Optional |
Thermos Efficiency | >=84% |
Ignition Type | Electrical Pulse Ignition with two ignition pins |
Vent Type | Flue exhaust automatic gas discharge |
Exhaust Pipe Diameter | 5L-7L | 8L | 9-10L | 10-12L |
Φ90 | Φ110 | Φ120 | Φ130 |
Power Supply | DC Battery:2*1.5v |
Water Pressure Range | 0.025MPa-0.8MPa/0.25bar-8bar |
Connection Pipe | Gas inlet | Gl/2" 9.5~11.5mm |
Water inlet | Gl/2" G3/4” |
Water outlet | Gl/2" G3/4" |
Flue Type Gas Water Heater |
Capacity（L） | Headload（kW） | Product Size (mm) | Carton Size (mm) | N.W. (KG) | G.W. (KG) | 20GP/40HQ (PCS) |
|
6 | 12kW | 440*290*135 | 525*340*185 | 4.7 | 5.8 | 850/2060 |
8 | 16kW | 520*330*185 | 605*400*255 | 7.1 | 8.2 | 442/1080 |
10 | 20kW | 585*330*185 | 705*420*255 | 8.5 | 10 | 380/910 |
12 | 24kW | 620*330*185 | 720*420*255 | 9.5 | 11 | 350//860 |
16 | 32kW | 650*330*185 | 740*420*255 | 10.5 | 12 | 320/840 |
20 | 40kW | 680*330*185 | 740*460*255 | 11.2 | 12.4 | 300/800 |
FAQ
Q1: Are you the manufacturer or trading company?
A:We are the manufacturer with nearly 30years home appliances manufacturing experiences.
Q2: Can we have our logo or company name to be printed on your products or the package?
A: Welcome OEM, CKD, SKD, Finished Product.
Q3: Can l get samples?
A:We can supply sample for checking, you can discuss the details with the sales.
Q4: How long will take for mass production?
A:Usually 25-45 days depending on the products category.
Q5: What certificate can you provide?
A:CE,CB,GS,ETL,SAA,KC,ROHS,REACH,LFG Bare available here.Please check the details with sales.
Q6: Can I visit your factory?
A:Do welcome your visiting. Please contact with the sales for the pick-up service.
