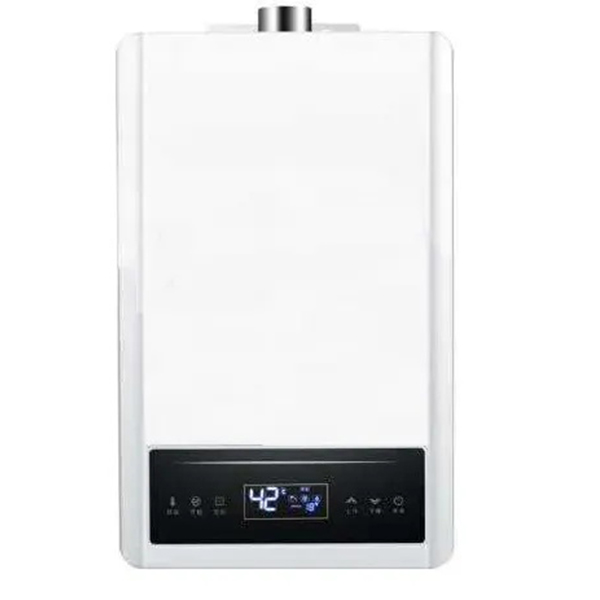

Product Name
| INSTANTANEOUS GAS WATER HEATER (Ltr/min)△T=25K |
Gas Type and Pressure | Y/L.P.G 2800Pa | T/N.G 2000Pa |
Storage / Tankless | Instant / Tankless |
Heating Stability Time | ≤ 10 seconds |
Installation | Wall Mounted |
Thermos Efficiency | >=84% |
Ignition Type | Automatic Pulse Ignition |
Exhaust Way | Constant Temperature Type With Two Pipe |
Exhaust Pipe Diameter(mm) | 60*90/60*100 |
Ignition Mode(Auto) | AC 220V/50Hz/60Hz & 110V/60Hz |
Power(W) | 25~35w |
Water Pressure Range | 0.025MPa-0.8MPa |
Connection Pipe
| Gas inlet | Gl/2" 9.5~11.5mm |
Water inlet | Gl/2" G3/4” |
Water outlet | Gl/2" G3/4" |

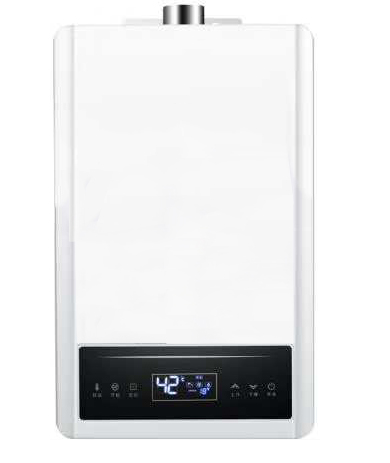

Constant Temperature Type Gas Water Heater |
Capacity（L） | Headload（kW） | Product Size (mm) | Carton Size (mm) | N.W. (KG) | G.W. (KG) | 20GP/40HQ (PCS) |
|
8 | 16kW | 520*320*140 | 640*390*210 | 9.3 | 10.2 | 520/1210 |
10 | 20kW | 520*320*140 | 640*390*210 | 10.2 | 11.2 | 520/1210 |
12 | 24kW | 590*350*140 | 710*420*210 | 10.8 | 11.8 | 460/1030 |
FAQ
Q1: Are you the manufacturer or trading company?
A:We are the manufacturer with nearly 30years home appliances manufacturing experiences.
Q2: Can we have our logo or company name to be printed on your products or the package?
A: Welcome OEM, CKD, SKD, Finished Product.
Q3: Can l get samples?
A:We can supply sample for checking, you can discuss the details with the sales.
Q4: How long will take for mass production?
A:Usually 25-45 days depending on the products category.
Q5: What certificate can you provide?
A:CE,CB,GS,ETL,SAA,KC,ROHS,REACH,LFG Bare available here.Please check the details with sales.
Q6: Can I visit your factory?
A:Do welcome your visiting. Please contact with the sales for the pick-up service.
